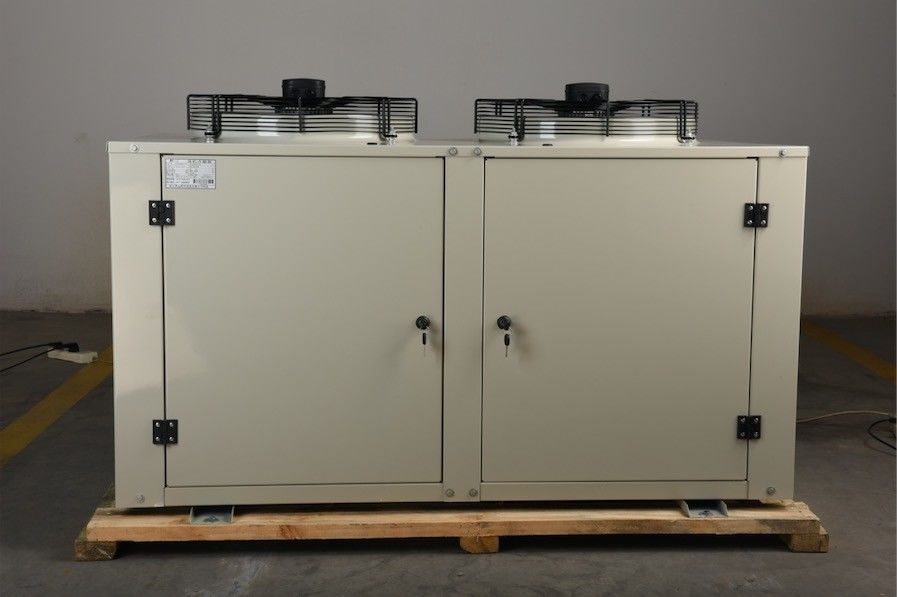

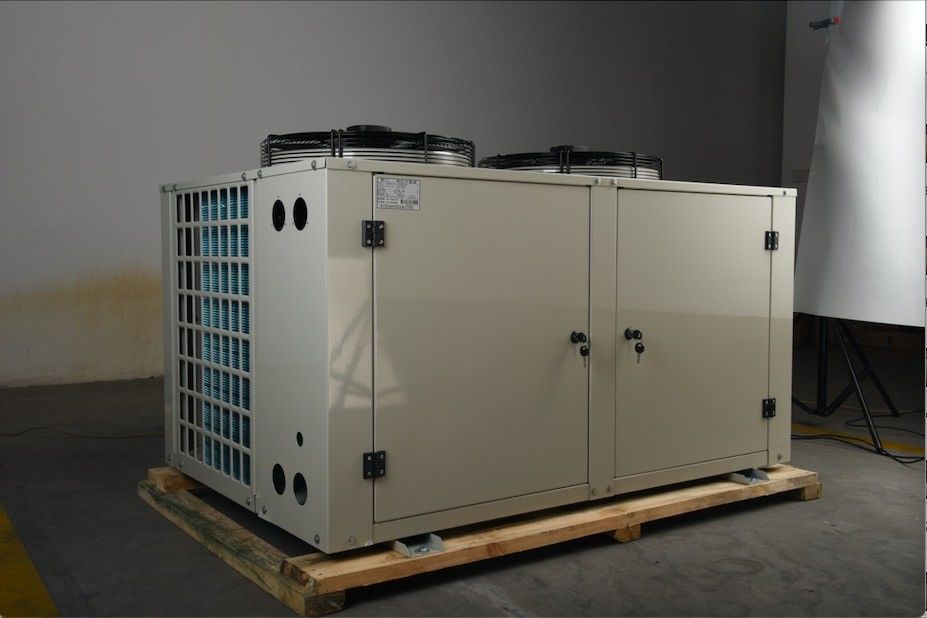

Box type condensing unit (4-40Hp) suitable for cold storage, meeting the requirements for refrigerants such as R404A, R507A, R448, R22, etc

محل منبع:

چین

نام تجاری:

Kaideli

شماره مدل:

با ما تماس بگیرید

درخواست قیمت

Box type condensing unit (4-40Hp) suitable for cold storage, meeting the requirements for refrigerants such as R404A, R507A, R448, R22, etc

جزئیات محصول

گواهی:

CE, UL, ROHS, ISO9001, CCC

نوع:

واحد چگالش، واحد کندانسور هوا خنک

درجه حرارت:

دمای بالا، دمای متوسط و دمای پایین، 8~15℃، -5~5℃، -15~-35℃

ظرفیت:

بر اساس دماهای مختلف تنظیم شده، از 2.3 تا 30.3 کیلووات متغیر است

ظرفیت خنک کننده:

بر اساس دماهای مختلف تنظیم شده، از 2.1 تا 60.1 کیلو وات متغیر است

قدرت اسب:

از 4 اسب بخار تا 40 اسب بخار

سرد:

R22، R404A، R507A

ولتاژ:

380V/3Ph/50Hz یا 220V/1Ph/50Hz

کمپرسور:

کمپرسور پیستونی نیمه بسته فراسکولد

کاربرد:

انبار سرد

سرویس OEM:

بله

خدمات پس از فروش ارائه شده است:

خدمات خارج از کشور ارائه نشده است، پشتیبانی شخص ثالث در خارج از کشور در دسترس است، مهندسین در دسترس

شرایط پرداخت و ارسال

مقدار حداقل تعداد سفارش

زمان تحویل

طی یک ماه

شرایط پرداخت

قصبه

محصولات مرتبط

با ما تماس بگیرید

86-0575-83063696

هم اکنون تماس بگیرید

توضیح محصول

BF series box-type condensing unit product overview

BF series box-type condensing units are mainly developed for cold store applications, which have the following features:
1.The main component is the semi-hermetic Frascold piston compressor imported from Italy, which features excellent performance and desirable cost-effectiveness.
2.The unit is designed for high temperature, medium temperature and low temperature applications, of which the high-temperature unit is mainly used for the cold store of 8~15 °C, and the medium-temperature unit is mainly used for the cold store of -5 ~ 5 °C, and the low-temperature unit is mainly used for the cold store of -15 ~ -35 °C;
3.It has a horizontal compact box-type structure, of which the enclosure is made of galvanized steel plate sprayed with powder coating in silver gray for excellent corrosion resistance, especially for outdoor installation and use; its chassis cover is connected with hinge structure, which is easy for operation and maintenance.
4.Designed with overall stretching large rounded high fan tube, it has the characteristics of excellent air guiding effect, low noise and aesthetic appearance.
5.The chassis panel is attached with honeycomb sound-insulation foam to effectively reduce the operating noise and sheet metal resonance of the unit.
6.The condenser is designed in U-shaped structure, with fewer pipes, large windward surface and high heat exchange efficiency.
7.Fitted with double fans in design, it can effectively reduce the noise of fan, facilitate condensing fan control and improve the operation reliability of the unit.
8.The wiring of electrical devices other than the compressor has been connected to the built-in terminal block of the unit, which is convenient for wiring.
9.It is compatible with R404A, R507A, R448, R449, R22 and other refrigerants.

Unit Configuration

Medium-temperature and high-temperature unit

Com

Components	Unit model
	BF04HY	BF05HY	BF07HY	BF12HY	BF15HY	BF20HY
	BF04MY	BF05MY	BF07MY	BF12MY	BF15MY	BF20MY	BF25MY	BF30MY	BF35MY
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	○	●	●	●	●	●	●
Oil separator	○	○	○	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●
High/low-pressure protection	●	●	●	●	●	●	●	●	●
Electronic oil pressure(oil level)protection	○	○	○	○	○	○	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○
Note:●Standard components,○ Optional component,/Not available

○

Low-temperature unit

Componen

Components	Unit model
Components	BF04LY	BF05LY	BF08LY	BF10LY	BF15LY	BF20LY	BF25LY	BF30LY	BF40LY
Semi-hermetic compressor	●	●	●	●	●	●	●	●	●
Oil heating band	●	●	●	●	●	●	●	●	●
Exhaust damping pipe	○	○	●	●	●	●	●	●	●
Oil separator	○	○	●	●	●	●	●	●	●
Condenser (hydrophilic aluminum foil)	●	●	●	●	●	●	●	●	●
External rotor fan	●	●	●	●	●	●	●	●	●
Reservoir	●	●	●	●	●	●	●	●	●
Reservoir outlet shut-off valve	●	●	●	●	●	●	●	●	●
Dry filter	●	●	●	●	●	●	●	●	●
Sight glasses	●	●	●	●	●	●	●	●	●
High/low-pressure protection	●	●	●	●	●	●	●	●	●
Electronic oil pressure(oil level)protection	○	○	○	○	●	●	●	●	●
High/low-pressure gauge	●	●	●	●	●	●	●	●	●
Refrigerant solenoid valve	○	○	○	○	○	○	○	○	○
High pressure control (fan control)	○	○	○	○	○	○	○	○	○
Low pressure control (vent shutdown)	○	○	○	○	○	○	○	○	○
Note:●Standard components,○ Optional component,/Not available
